Id Lookup

Sometimes it is neccessary to resolve some entities by id at query time. To use this feature you need admin access to the qsc plattform, because you need to change the search pipeline. Ask you administrator for more details.

Configurations

For the id lookup some complex configurations have to be done.

parameters	example	description
ParallelFilter.id	parallelIdLookupFilterTags	A unique id for the parallel filter. Pattern parallelIdLookupFilter$Entity
ParallelFilter.pipelines.id	tagLookupPipeline	A unique id for the lookup pipeline filter.
ElasticFilter.baseUrl	{{ searchIndexUrl }}/{{ env }}.{{ tenant }}.tags	The elasticsearch base url
ElasticFilter.resultSetId	lookupTags	The result set id where the looked up entites are stored in the pipeline container. Pattern: lookup$Entity
ElasticFilter.queryTransformer.profile	deprecated	deprecated
ElasticFilter.queryTransformer.searchResultId	{{searchCode}}	The result set from where the ids must be extracted
ElasticFilter.queryTransformer.idFields	sport_type_tag_id	A list of field ids from where the ids for the lookup are extracted.
ElasticFilter.searchResultTransformer.fieldMapping	-	Mapping which defines the rquired fields of the entity to display.
QscIdLookupMergingFilter.id	qscIdLookupMergingFilterTags	A unique id. Pattern: qscIdLookupMergingFilter$Entity
QscIdLookupMergingFilter.resultSetId	{{searchCode}}	The id of the result set to which the entities must be merged.
QscIdLookupMergingFilter.lookupResultSetId	lookupTags	The id of the result set where the entities for merging are available.
QscIdLookupMergingFilter.idMappings	sport_type_tag_id->sport_type_tag	A mapping from the id to mapped, to id of the field where the mapped entity is stored.

  - !!com.quasiris.qsf.pipeline.filter.ParallelFilter
    active: true
    id: parallelIdLookupFilterTags
    pipelines:
      - filterList:
          - !!com.quasiris.qsf.pipeline.filter.elastic.ElasticFilter
            active: true
            baseUrl: "{{ searchIndexUrl }}/{{ env }}.{{ tenant }}.tags"
            id: idLookupElasticFilterTags
            resultSetId: lookupTags
            queryTransformer: !!com.quasiris.qsc.search.service.idlookup.QscIdLookupQueryTransformer
              profile: DEPRECATED
              searchResultId: {{searchCode}}
              idFields:
                - sport_type_tag_id
            searchResultTransformer: !!com.quasiris.qsf.pipeline.filter.elastic.Elastic2SearchResultMappingTransformer
              fieldMapping:
                name:
                  - name
                id:
                  - id
                category:
                  - category
                slug:
                  - slug
          - !!com.quasiris.qsc.search.service.idlookup.QscIdLookupMergingFilter
            active: true
            id: qscIdLookupMergingFilterTags
            resultSetId: {{searchCode}}
            lookupResultSetId: lookupTags
            idMappings:
              - sport_type_tag_id->sport_type_tag
        id: tagLookupPipeline

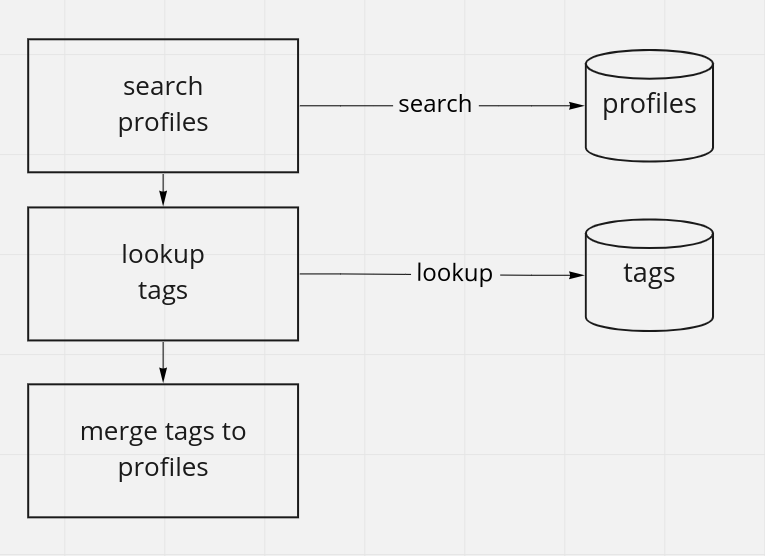

How it works

• at first a search result is retrieved
• the QscIdLookupQueryTransformer extract the ids from the configured idField: ["sport_type_tag_id"] in the retrieved search result
• the values for the extracted ids are retrieved by a elastic search query
• the index is configured in the baseUrl: {{ searchIndexUrl }}/{{ env }}.{{ tenant }}.tags

{
  "result": {
    "profiles": {
      "documents": [
        {
          "document": {
            "sport_type_tag_id": "9361f47f-2998-4b31-ada9-bf9a3b9dac06",
            "name": "A basketball profile"
          }
        }
      ]
    }
  }
}

• the QscIdLookupMergingFilter merges the retrieved entites from the lookupResultSetId: lookupTags to the resultSetId: {{searchCode}}
• the sourceId and the target field name are configured in the ``idMappings: sport_type_tag_id->sport_type_tag`
• the Elastic2SearchResultMappingTransformer map the necessary fields of the entity

fieldMapping:
    name:
      - name
    id:
      - id
    category:
      - category
    slug:
      - slug

{
  "result": {
    "profiles": {
      "documents": [
        {
          "document": {
            "sport_type_tag_id": "9361f47f-2998-4b31-ada9-bf9a3b9dac06",
            "sport_type_tag": {
              "name": "Handball",
              "id": "9361f47f-2998-4b31-ada9-bf9a3b9dac06",
              "category": "SPORT_TYPE",
              "slug": "handball"
            },
            "name": "A handball profile"
          }
        }
      ]
    }
  }
}

• the filter must be wrapped by a ParallelFilter because QscIdLookupQueryTransformer will stop the pipeline in case no ids were found to resolve
